robotic module

The robotic module provides a client for robotic operation of the APO SONG telescope. It uses the routine and Alpyca devices of the aposong module to execute observatory, telescope and camera control.

The robotic module can draw targets and observing sequences from a local database or from a database populated by the SONG conductor at Aarhus.

The basic robotic operation is independent of where requests are drawn from. The main function is observe(). This will wait until a specified time relative to sunset to open the dome, and then wait until a specified time relative to nautical twilight to start observing. Observing continues in a loop until a specified time relative to morning twilight. Safety status is checked in between each object to determine whether to suspend operations until it becomes safe again; note that the dome closes independently immediately on unsafe conditions through the Dome server.

Local requests are drawn from a Postgres robotic schema that includes a database table (requests) that gives a target (defined in target table), observing schedule constraints (defined in schedule table), and observing sequence (defined in sequence table). The getbest() routine selects the best object to observed given the constraints and length of observing sequence based on either a criterion to observe objects before they set (default), or to observe objects that will be available for the longest amount of time.

For SONG targets, robotic targets are conducted through Postgres database syncs from Aarhus to the song1m_db machine. Requested observations are loaded into the obs_request_4 table in db_song with information about the target and the observing sequence. As the request is started, completed, or aborted, the status is communicated back through the obs_reqeust_status_4 table in db_apo. Other tables in db_apo communicate the state of the APO system so that the conductor can choose appropriate targets.

Once an object is selected, it is acquired, guiding started, and then the exposure sequence executed. Completed sequences are logged back into the Postgres database in the observed table.

Calibration sequences can also be obtained automatically.

At the end of the night, web pages, focus curves, and guider movies for the night are constructed.

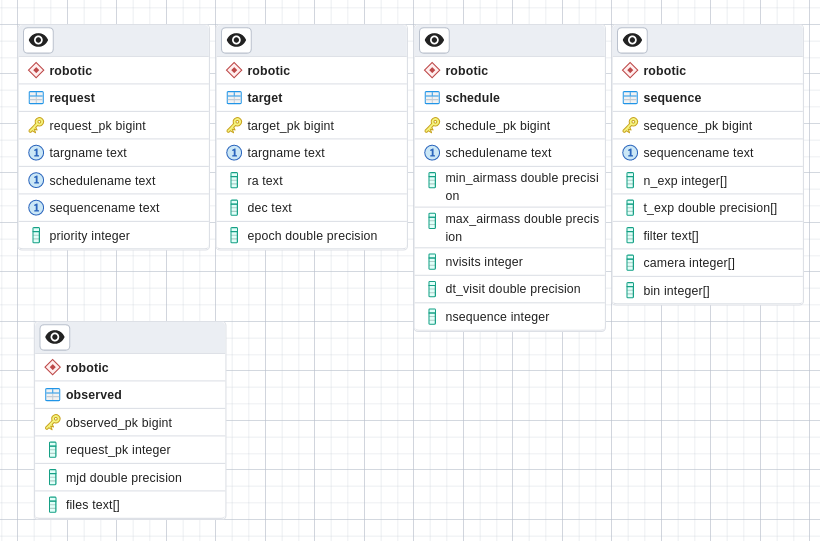

The contents of the database tables for local requests is shown below:

To add a local observation request, use the loadrequest() function. This requires specifying a target, sequence, schedule, from the respective database tables, as well as a integer priority (larger number is higher priority). You can retrieve existing entries in the tables using the query() function, and can add new entries using loadtarg(), loadsched(), and loadseq() functions. See docstrings (using help or ?) for details.

Module functions

class robotic.Target(name, ra, dec, mag=99.999, epoch=2000.0)

Defines a target and how to acquire it

class robotic.Schedule(name, min_airmass=1.005, max_airmass=1.8, nvisits=1, dt_visit=1.0)

Defines an observing schedule

class robotic.Sequence(name, filt=['U', 'B', 'V', 'R', 'I'], n_exp=[1, 1, 1, 1, 1], t_exp=[1, 1, 1, 1, 1], camera=[0, 0, 0, 0, 0], bin=[1, 1, 1, 1, 1])

Defines an exposure sequence, and a method of executing it

robotic.hamax(dec, airmax, lat)

Determine maximum hour angle given maximum airmass, declination, and latitude

robotic.secz(ha, dec, lat)

Determine airmass (secz) given hour angle, declination, and latitude

robotic.getrequests()

Get observing parameters for all requests by joining target, sequence, and schedule

robotic.getsong(t=None, site='APO', verbose=True, max_airmass=2, dt_focus=10)

Try to get observing request from SONG database

robotic.getlocal(t=None, requests=None, site='APO', criterion='setting', mindec=-90, maxdec=90, skip=None, verbose=True)

Get best request from local database table of requests and time

robotic.observe_object(request, display=None, acquire=True, fact=1, nfact=1, header=None, req_no=-1)

Given request, do the observation and record

robotic.load_song_status(req_no, status, no_exp=None)

Load status into song obs_request_4_status table

robotic.load_status(status)

Load status into database

robotic.load_object(request, mjd, names)

Load observation into database

robotic.observe(focstart=32400, dt_focus=[0.5, 1.0, 1.0, 2.0], display=None, dt_sunset=0, dt_nautical=-0.2, obs='apo', tz='US/Mountain', criterion='best', maxdec=None, cals=True, gtemp=-5, stemp=-20, initfoc=True, fact=1, nfact=1, usesong=True)

Start full observing night sequence

Parameters:

• focstart (integer, default=32400) – initial focus guess

• dt_focus (float, default=[1.5]) – minimum time to wait after focus run before triggering another (will wait for sequence to complete). if list, increment list index each time focus run is done, e.g. to achieve more frequent focus at beginning of night

• display (pyvista TV object) – if specified, display images as they are taken

• dt_sunset (float, default=0) – time relative to sunset to open dome (only if opening conditions are met)

• dt_nautical (float, default=-0.2) – time relative to nautical twilight to start observations

• obs (str, default='apo') – observatory name, for getting site coordinates

• tz (str, default='US/Mountain') – time zone

• criterion (str, default='best') – criterion for choosing object to observe, ‘setting’, ‘best’ or ‘longest’

• maxdec (float, default=None) – if given, maximum declination

• cals (bool, default=True) – if True take cals at end of night

• gtemp (float, default=-5) – set temperature for guide CCD

• stemp (float, default=-15) – set temperature for spectrograph CCD

• initfoc (boot, default=True) – True to take initial focus run, so can set False if restarting after focus has been done

• fact (float, default=1) – factor to increase all database exposure times by

• nfact (int, default=1) – factor to increase all database number of exposures b

robotic.focus(foc0=28800, delta=75, n=9, decs=[52], iodine=True, display=None)

Do focus run for object on meridian

robotic.loadtargs(file, schedule='rv', sequence='UBVRI', insert=False)

Load database tables from old 1m input file

robotic.loadtarg(targname, ra, dec, epoch=2000, mag=99)

Load a single target into robotic.target

Parameters:

• targname (str) – Name of target, must be unique in table

• ra (str) – RA (J2000) in hh:mm:ss

• dec (str) – DEC (J2000) in hh:mm:ss

• mag (float, optional, default=99) – magnitude of target, used to compute throughput in reduction

robotic.loadsched(name, min_airmass=1.0, max_airmass=2, nvisits=1, dt_visit=0)

Load a single schedule into robotic.schedule

Parameters:

• name (str) – name for schedule, must be unique in table

• min_airmass (float, optional, default=1) – minimum airmass

• max_airmass (float, optional, default=2) – maximum airmass

• nvisits (int, optional, default=1) – number of requested visits, set to -1 to keep repeating

• dt_visit (float, optional, default=0) – minimum amount of time between visits in days

robotic.loadseq(name, t_exp=[1], n_exp=[1], filt=['V'], camera=[0], bin=[1])

Load a single sequence into robotic.sequence

Parameters:

• name (str) – Unique name for observing sequence

• t_exp (list) – Exposure times

• n_exp (list of int) – Number of exposures, must have same number of entries as t_exp

• filt (list of str) – Filters (‘open’ or ‘iodine’), must have same number of entries as t_exp

• camera (list of int) – Camera to use (should be 3 for SONG spectrograph), must have same number of entries as t_exp

• bin (list of int) – Binning to use (should be 2 for SONG spectrograph), must have same number of entries as t_exp

Example

loadseq(‘my_sequence’,t_exp=[200,500],n_exp=[1,5],filt=[‘open’,’iodine’],camera=[3,3],bin=[3,3])

would load a sequence called my_sequence that would consist of 1 200s exposure without iodine, then 5 500s exposures with iodine.

robotic.loadrequest(targname, seqname, schedname, priority)

Load a request in local robotic database

A request consists of a target (with pointing information), a sequence (with a specified sequence of exposures), a schedule (saying what is required to execute the sequence, and how many times to execute it), and a priority which sets the priority relative to other requests that might also meet their observability requirements. Targets, sequences, and schedules are loaded into their own database tables, and can be used by multiple requests. You can see the loaded values using robotic.query()

Parameters:

• targname (str) – Target name, must exist in robotic.target table

• seqname (str) – Sequence name, must exist in robotic.sequence table

• schedname (str) – Schedule name, must exist in robotic.schedule table

• priority (int) – Priority, higher number is higher priority

robotic.create_request(targname, ra, dec, epoch=2000, filter=['none'], bin=2, n_exp=[1], t_exp=[60], camera=3)

Creates an observing request for interactive observing with observe_object()

robotic.query(table=None)

Shows current entries in target, schedule, sequence, or request database table

Parameters:

table (string) – Table to query, must be one of ‘target’, ‘schedule’, ‘sequence’, or ‘request’

Returns:

with database entries

Return type:

astropy Table

robotic.mkhtml(mjd=None)

Make HTML pages for a night of observing

Parameters:

mjd (int, default=None) – make pages for specified MJD, now if mjd=None

robotic.mkmovie(mjd, root='/data/1m/', clobber=False)

Make guider movies from guide images in guide subdirectory for specified MJD

robotic.mkfocusplots(mjd, display=None, root='/data/1m/', clobber=False)

Make focus plot from focus sequences from database for specified MJD

robotic.mklog(mjd, root='/data/1m/', pause=False, clobber=False)

Makes master log page for specified MJD with observed table, exposure table, and links
